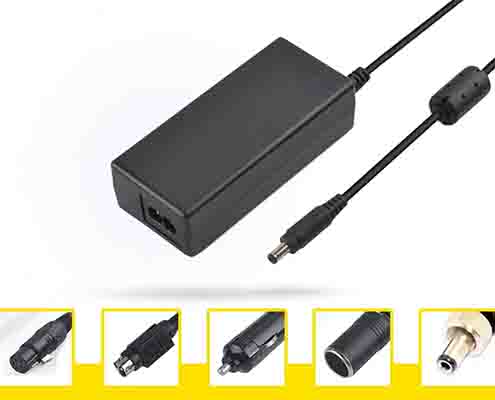

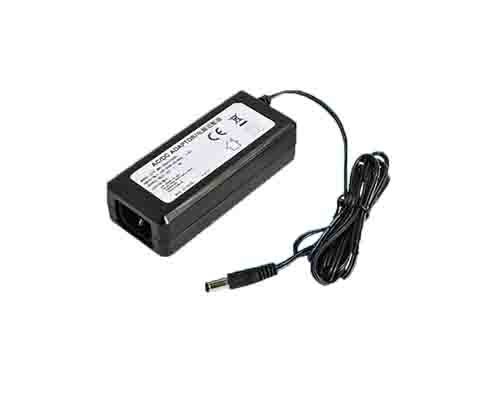

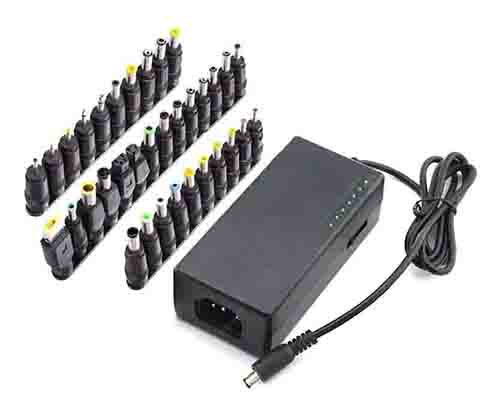

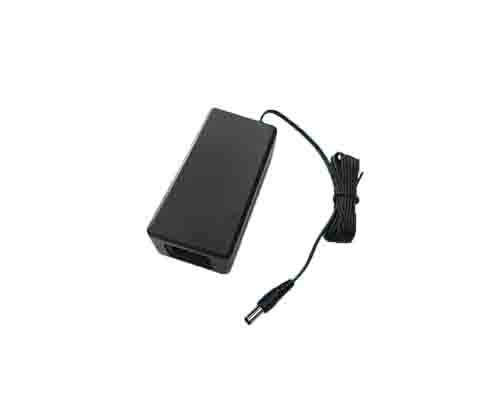

• Universal Desktop Adaptor

Universal Desktop Adaptor

Product Model: Universal Desktop Adaptor

Universal Desktop Adaptor Application:

  1. 100 to 240VAC Universal Input
  2. Input
    Voltage:100 to 240 VAC
    Line Frequency: 50/60 Hz
    Current:0.3A Max
    Protection:Internal Primary Current Fuse,Inrush Limiting
    Configuration:Horizontal case
  3. Output
    Load: ±5%(Typical)
    Ripple:1-2% Vp-p Max. For Output Voltage@ Full Load
    Transient Response:0.5mS for 50% Load Change Typical
    Hold-up Time:10mS @Full Load
    Protection:Short Circuit Protection,Over Voltage Protection,Over Current Protection
    DC Plug According to Customer Requirements
    DC Cord: Flat or Round
    Ferrite Core:Optional

Power Adapter

  1. Safety Approvals
    CE/GS/CB
    EN60950-1 EN61558-1 EN61558-2-16
    IEC60950-1 IEC61558-1 IEC61558-16
  2. Mechanical
    Weight:Adapter:75g,White Box:10g
    Dimension:For Case:L59*W42*H25 mm; For White Box:L75*W72*H50 mm; For Carton:L370*W310*H250 mm(126 pcs / Carton)
  3. Electrical
    Topology: Swicthing Flyback
    Dielectric Withstand: 3000VAC Primary – Secondary
    Leakage Current:0.25mA
    Efficiency: CoC ErP Certified
    Efficient: EN55022,EN55024,EN55014
    Efficient: EN61000-3-2 & EN61000-3-3
    MTBF: 100,000 Calculated Hours at 25℃,by Telcordia SR-332
